Broad phase algorithms and data structures

Trees, sweeps and the big O

Posted on February 26, 2026

An important part of game engines and various geospatial software is the notion of overlap between objects. Objects are represented using data (in games entities have a position and a collision shape, while in databases entities are multimodal data points). We want to find collision between these objects, or to search for nearest neighors of any single object.

The obvious solution of scanning every pair (or every n-tuple) is too slow for real world data, and so we need to find a way to quickly prune false negatives or group potential candidates together. I will cover some of these solutions in this article.

If you just want the results, skip to here. The source code for all the implementations can be found in this github repository.

Metric spaces

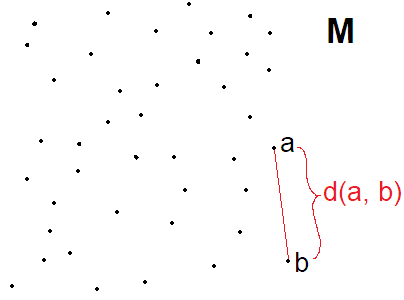

We are all adults here so let’s formalize things. A metric space is a set of objects $M$, which can be anything, and a distance function $d : M \times M \to \mathbb{R}$. So if you have a set of any thing of some type, and you can define a “distance” between any two things, you’ve got a metric space. The distance function is called a metric, and you use this metric to measure things beyond the distances between two objects in the set. The metric must satisfy these properties:

The Euclidean space is a classic example of a metric space. It’s how we percieve the world, it’s what games use, and it’s what we normally think of when we say “space”:

In more complicated scenarios where you have data of different type and none of them represent position in real space, you have to get creative. But as long as you can measure the distance between these two objects and this measure satisfies the above properties, it’s a metric space, no matter how unintuitive the measure function itself may be.

This article will deal with the Euclidean space because it’s primarilly written for game engines and because it’s easy and intuitive to visualize.

What does intersection mean in the context of metric spaces? All elements in a metric space are points so they don’t have a shape. Without a shape, we can’t talk about intersection. Overlap of two distinct points is not possible because $d(a, b) = 0 \xRightarrow{\text{p.1}} a = b$.
We cannot work on metric spaces alone. A ball $B$ of radius $r$ centered at $c is a subset of the metric space defined like so:

$$B(c, r) = \{ x \in M \mid d(c, x) < r \} $$

A line segment is a set of points which we can define with a parametric equation:

$$L(a, b) = \{ (1 - t)a + tb \mid t \in [0, 1] \}$$

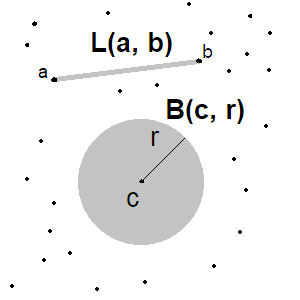

See the image below. I didn’t even touch up on the subject of boundaries: a ball may or may note include its boundary ($d(c, x) \leq r$ or $d(c, x) < r$). Usually balls are “open” meaning the boundary isn’t included. But for our line definition, we said $t \in [0, 1]$ which includes the endpoints $a$ and $b$. In pracice, we never really deal with continuous spaces because of natural limitations of hardware, so this problem is eliminiated by sacrificing precision.

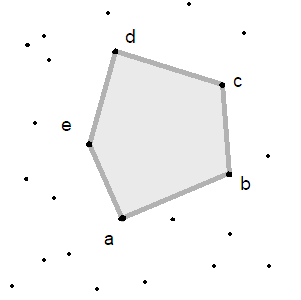

Polygons are tricky: we start with a union of line segments such that each endpoint belongs to exactly $2$ line segments (like a closed chain):

$$P(p_1, p_2, …, p_n) = L(p_1, p_2) \cup L(p_2, p_3) \cup … \cup L(p_{n-1}, p_n)$$

That’s only for the polygon boundary; what about the interior? Well, we need to define what an interior is. Take a look at the image below:

Why do we know that the shaded area is the interior of $P(a,b,c,d,e)$? There isn’t enough information right now to make this assumption. Jordan curve theorem states that an interior and exterior will always exist, but determining which is which is up to us. This is where the concept of orientation comes in. Normally we define all points in a clockwise or counter clockwise order. Once we do that, a polygon with its interior can be defined as:

$$P(p_1, p_2, …, p_n) = \{ k_1p_1 + k_2p_2 + … + k_{n}p_{n} \ge 0 \mid \sum_{i=1}^{n} k_i = 1 \}$$

which is just a generalization of the line segment definition.

Intersection of shapes becomes intersection of sets. There is an intersection between shapes $A$ and $B$ if $A \cap B \neq \varnothing$. We can’t compute these set intersections because there is an infinite amount of points in any shape. Instead, we rely on analytic solutions or clever vector formulas to come to a conclusion.
Determining the intersecting region in the general sense is not possible (for polygons we could use clipping algorithms), but that’s not an issue because in game physics we only care about the normal vector of the intersection, intersection depth projected along that normal vector and a finite set of clipping points (in 2D it’s usually $2$ points at most). This is a topic for narrow phase collision, though.

All this talk about metric spaces, and yet the rest of this article will deal with vectors, trees and a bunch of if statements, so why bother? I wanted to help build an intuition on how these algorithms and data structures came to be. Much of the work here can be visualized and the correctness of this visualiation depends on understanding first principles which, for in this article, are metric spaces. By formalizing what’s otherwise considered common knowledge, we can eliminate hand-wavy logic. Just by having you think about what happens when shapes become infinitely big or small, or what happens when two shapes are infinitely far away, you can start to appreciate why the assumptions are valid, or at the very least feel valid.

Problem formulation

Let entity be a type representing an object in two-dimensional Euclidean space with a volume larger than $0$. I’ve picked two dimensions for simplicity. Having a volume larger than $0$ just means that the entity has a shape and is not an inifnitely small point. Such an entity is often called a particle and they simplify things, but are not practial in the general sense.

The task is to find the set of pairs of entities $e_1, e_2$ whose volumes are intersecting. This may vaguely resemble collision detection, but the entities' velocities are ignored. We are only interested in answering this question: which entities are intersecting right now?

Depending on your use case, this pair of entities can be ordered (2-tuple) or unordered (binary set). Game engines normally deal with unordered pairs because there’s no need to process the same collision twice. In this article we talk about unordered pairs $\{e_1, e_2\}$.

We know ahead of time which entity pairs can be elements of the resulting set. Any entity can be paired up against any other entity (except for itself), so if we have $n$ entities, the total number of possible pairs is $\binom{n}{2}$.

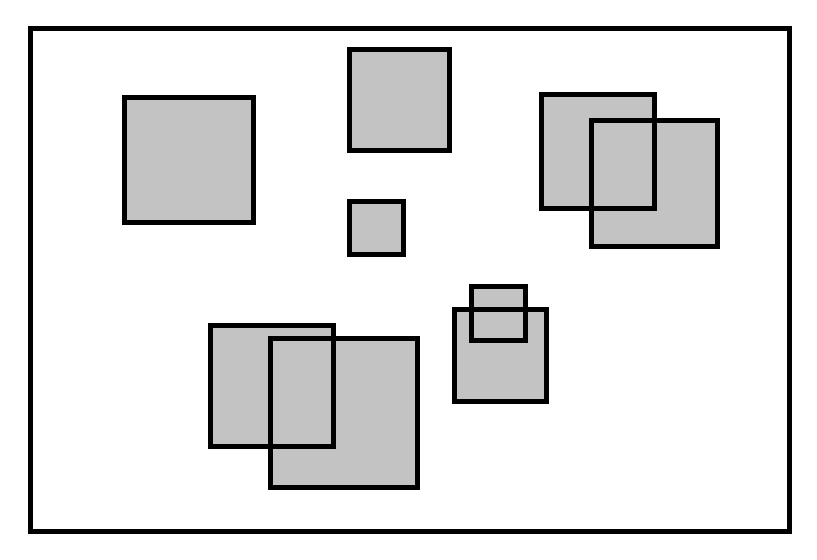

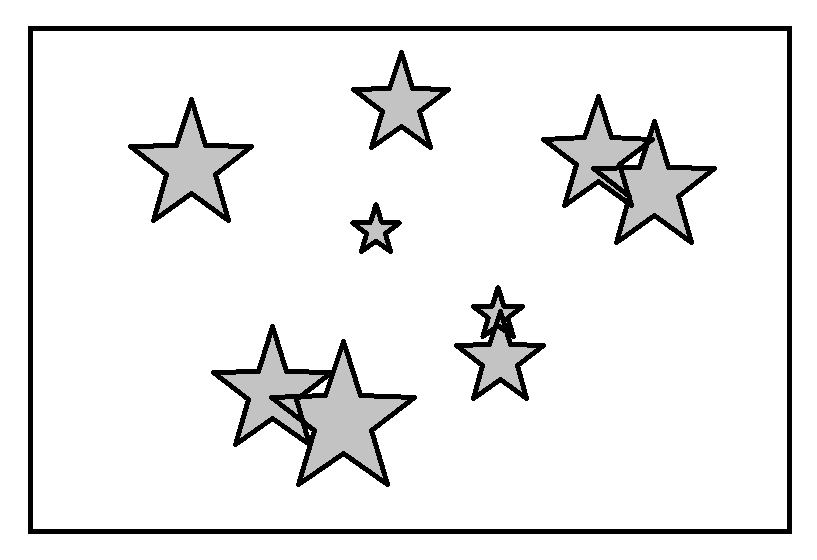

It’s important to establish the concept of bounding volumes. Take a look at the image below. If every entity in the scene is a star, then checking for star intersection would require a sophisticated intersection algorithm like Separating Axis Test.

Percise intersection checks are part of the narrow phase in collision detection. This article deals with the broad phase. It’s very wasteful to always perform precise intersection algorithms on the exact shapes. We can purge false positives by first checking for intersection of the entities’ bounding volumes. These volumes are often very primitive and efficient to construct and check for intersection against.

Axis-aligned rectangles or circles have an $O(1)$ intersection algorithm, and their construction is $O(N)$ for the number of points $N$ in the entity’s volume. Commonly, we can compute the bounding volume ahead of time and assume it changes only when the entity scales, rotates or the bounding volume itself transforms. Game engines tend to not allow the latter case, as most shapes are aassumed to be rigid i.e. undeformable.

This article uses axis-aligned rectangles for the bounding volumes. Circles are more efficient for shapes with a similar span in both axes, otherwise ellipses can be used. However, the strategies discussed in this article mostly deal with the very edge of an entity’s volume in the $x$ or $y$ axis, and so it seems natural to go with rectangles.

Naive approach

The simplest solution to this problem is to iterate through all possible pairs of entities and check if their bounding volumes intersect. This approach scales poorly: we perform $\binom{n}{2}$ comparisons in $O(n^2)$ time. Despite its poor performance, this brute force approach can be used as a baseline for checking the correctness of other strategies.

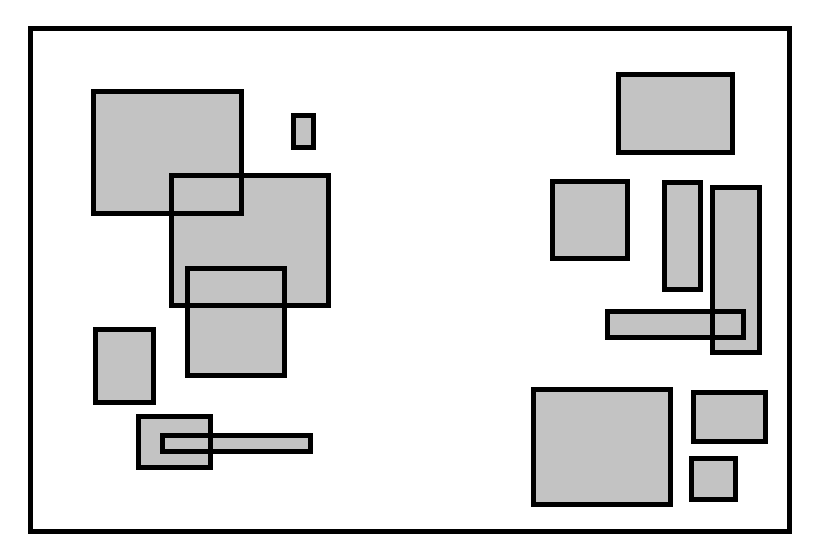

To develop an intuition on how we can improve on this, take a look at the image below. Can you see how the rectangles have been placed in such a way that they naturally form two big clusters?

It seems obvious that no rectangle from the left cluser can intersect with any rectangle from the right cluster. What if we processed these clusters separately? There are $7$ rectangles in the first cluster and $8$ in the second. It would take $\binom{7}{2} + \binom{8}{2} = 49$ checks, compared to the standard $\binom{15}{2} = 105$.

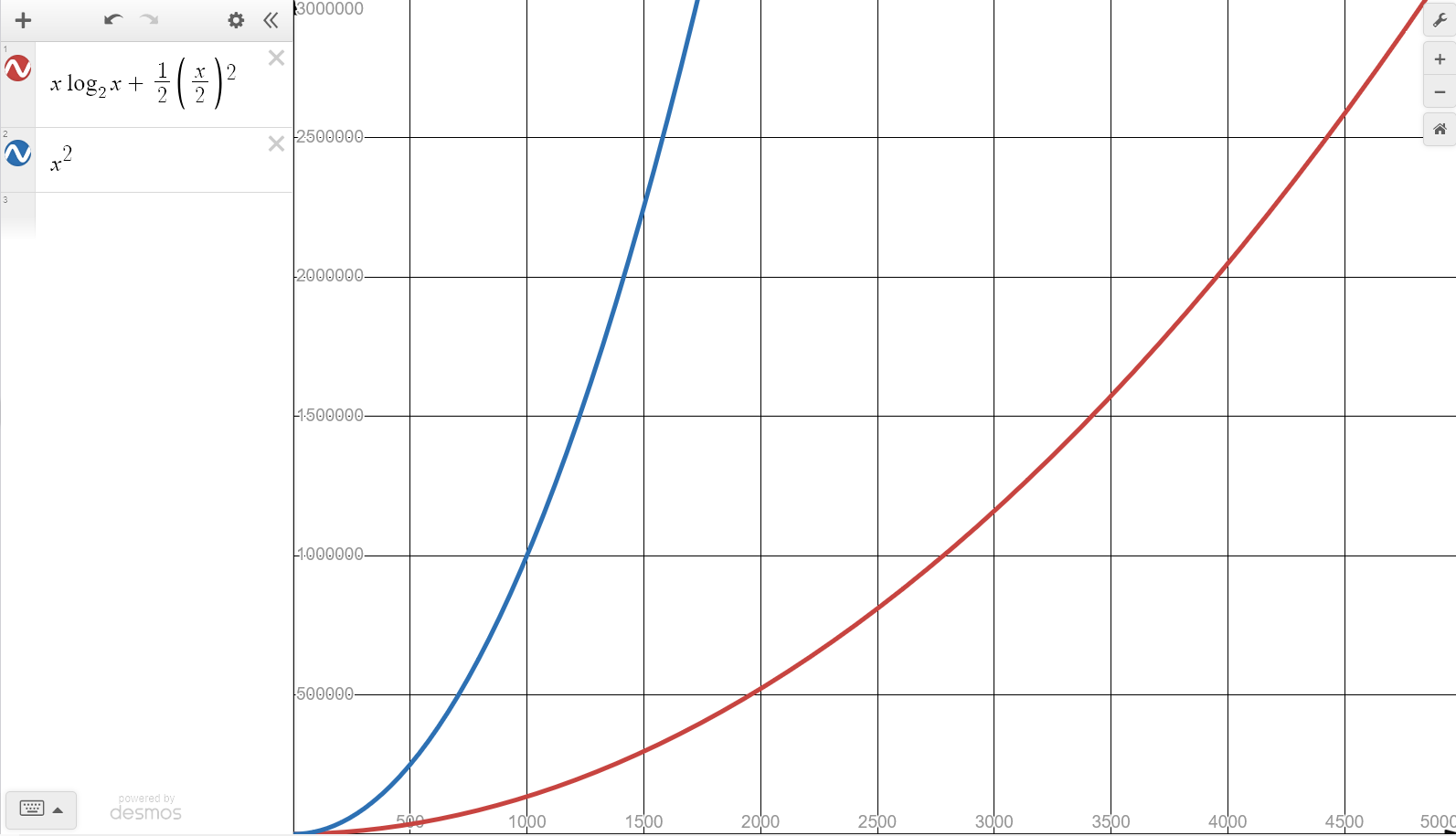

To obtain these clusters, we’d sort the rectangles along the $x$ axis and draw a line between the two adjacent rectangles with the furthest distance along the $x$ axis. Sometimes it may be better to split along the $y$ axis instead. We can determine the better axis in linear time by computing the variance along each axis. In an ideal case, this amounts to $n\log(n) + \frac{n^2}{2}$. That’s $O(n^2)$, sure, but look at this graph:

In a realistic and practical scenario, the number of entities in a game will not approach anywhere near infinity. If we had $5000$ entities, we would save approx. $2 \cdot 10^7$ comparisons. That’s a non-trivial amount. While $N=5000$ is good enough for games, if we’re scanning through a database with millions of entries, the gains diminish fast. We cannot always discard the theoretical limit in favor of the practical limit. Furthermore, there are two big issues with this approach in general.

  1. it doesn’t work if the rectangles don’t form two disjoint clusters
  2. it doesn’t work if the clusters are unbalanced

By finding a smarter and more general approach to grouping likely candidates, these two problems can be eliminated.

Sweep and prune

Sweep and prune (a.k.a. sort and sweep) is a classic algorithm for broad phase collision detection. It works by sorting the bounding volumes and pruning all candidates which are guaranteed not to intersect.

I will first describe a weaker algorithm from which sweep and prune can then be developed. The basis for this algorithm is the same as sweep and prune. First, we sort all the objects (bounding volumes) along one of the axes. For illustration purposes I’ll stick with the $x$ axis. Then, for each object, we find the lower bound right edge and upper bound left edge volume. Everything in between those two is a collision candidate for our object. Seems simple enough, but we need to be careful on how to sort the objects and how to find the bounds.

For example, let’s have an arrangement of objects like in the image below. We have sort the objects on the x axis according to some modification of the metric function $d^\prime : M \to \mathbb{R}$. In this example, I’ve used the $x$ coordinate of the object’s left edge. Below the objects is an axis line where you can clearly see the projection of the left edge. The numbers represent ordering of the objects, not axis units.

The second part of the algorithm is to find candidates for each object. Observe the 6th object which has been highlighted in the image. In the brute force approach, we scan through the entire set of objects. This time around, we can take advantage of the fact that the objects are sorted by their left edge.

When we sort things, an invariant is established: if a number $k$ is the $i$-th element of the list, then all elements to the right (at position $i+1, i+2, …, n$) are greater or equal than $k$, and all elements to the left (at position $i-1, i-2, …, 1$) are smaller or equal than $k$. This is the basis for binary search and this is what we use to quickly find the upper bound.

What is the upper bound in our example? It’s the first object whose left edge is bigger than the 6th object’s right edge (9). We use binary search to find this object in $O(\log{n})$.

What about the lower bound? It’s the first object whose right edge is smaller than the 6th object’s left edge (3). We can’t do binary search here because the invariant doesn’t guarantee anything about the right edge of objects being ordered. We have two options: sort by the right edge as well, or do a linear scan for the lower bound. The first approach is tricky, while the second approach decays into $O(n)$.

Once we find the upper and lower bound, everything in between is a candidate for middle phase collision (check which rectangles are really intersecting) and narrow phase collision (use the actual shapes instead of bounding volumes). The running time of this pseudo-sweep and prune algorithm is still $O(n^2)$, but the average case yields better performance than the naive approach. Furthermore, if we can assume temporal coherence (more on that below), then the amortized runtime can be reduced to $\mathcal{O}(n\log{n})$.

Now let’s look at the real sweep and prune algorithm. The key idea behind sweep and prune is not to sort objects by their left or right edge, but to sort both edges together.

Let’s solve a simpler, more isolated problem first. Imagine you are given a string s where each character is either an opening bracket [ or a closing one ]. An interval is uniquely defined by an opening bracket and a closing bracket. Find all intersections between intervals. For example, if s is [[]][[][]][] then there are $3$ intersections.
Firstly, observe that the answer is unique assuming s is well formed. Even in cases like [[]] where we could either have a large interval enclosing a smaller one, or two equaly sized intervals intersecting, the answer stays the same. This problem is solved using a stack. We linearly scan through the string and on each occurrence of [, we increase the result by the stack size and push [ onto the stack. On each occurrence of ], we pop from the stack.

The next iteration of this problem requires us to retrieve all intersections. Each interval is numbered $1, 2, 3, …$ and the algorithm should output a list of pairs $(i, j), i < j$. Notice first that we must be provided with the interval ordering or else the solution cannot be unique. Indeed, the input is [[][]] has different possible solutions: $\{(1,2), (1,3)\}, \{(1,2), (2,3)\}$. So let’s assume that the input is a list of pairs (char, int). To solve this problem, we keep a stack of integers denoting unclosed intervals scanned so far, and on each ('[', k), we append (k_i, k) to the result, where k_i is the $i$-th element of the stack. This is the optimal solution to this problem and it has a worst-case running time of $O(n^2)$, though on average it’s $O(n)$.

Sweep and prune generalizes this approach. Let edge be a triple $(x, v, c) | x\in \mathbb{R}, v \in \mathbb{N}, c \in \{0,1\}$ representing the edge’s coordinate $x$, a unique identifier for the volume or object $v$ which the edge belongs to, and a boolean $c$ for the edge is opening (lower, leftmost, $0$) or closing (upper, rightmost, $1$). We create a list of edges by mapping each object into two of these edge tuples. Then, we sort the list by $x$ and perform the algorithm described above.

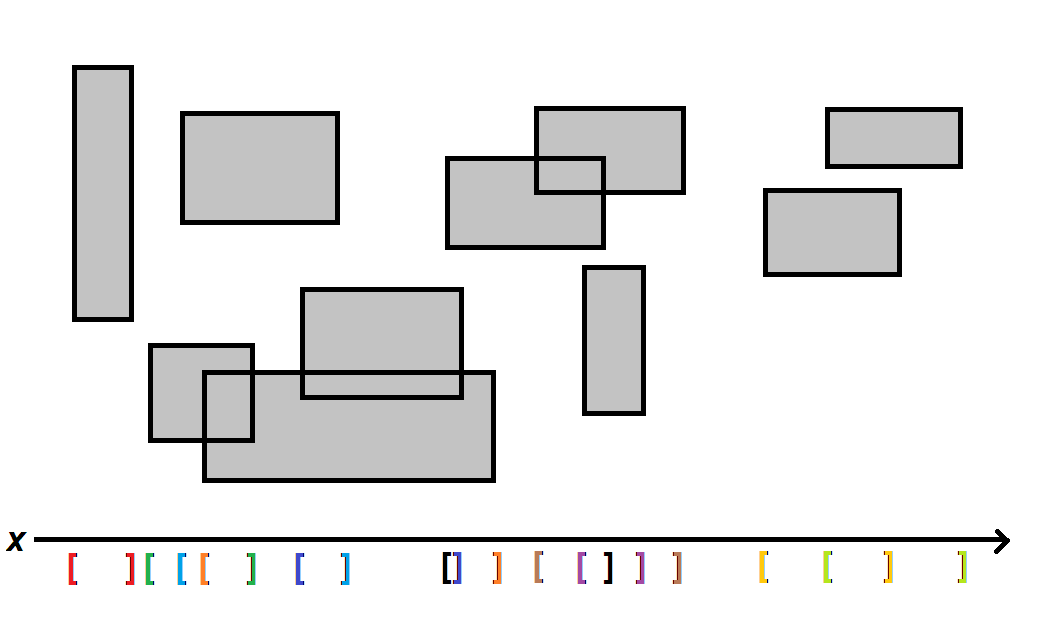

See the image below. Time time we aren’t querying each object individually, and instead we’re doing a linear pass through the list and generating all results at once.

The performance of sweep and prune is $O(n\log{n} + k)$ where $k$ is the maximum number of pairs. In the worst case it’s $\binom{n}{2}$, but the worst case is almost never occurs, and $k$ is usually $O(n)$, so the running time is approximated to $O(n\log{n})$. This can be further improved. A lot of processing time is wasted on sorting the array at each invocation of the algorithm. Think about temporal coherence: between two calls of the algorithm (usually two adjacent frames in a game), the objects will not move much far because their velocities are usually much smaller than the perimiter of their bounding volumes. Therefore, the sorted list will not change much. In other words, we can assume the list will remain partially sorted, and thus we should use an adaptive sorting algorithms like insertion sort, which have a $O(n)$ running time for partially ordered lists. We can’t always rely on this, especially on the very first frame, but if temporal coherence is assumed (which is the case in most video games), then the amortized running time for sweep and prune is $\mathcal{O}(n)$.

Grid hashing

One important property of shapes in a metric space $(M, d)$ is that two shapes are more likely to be intersecting the closer they get, or more formally:

$$ \lim_{d(A, B) \to 0} P(A \cap B \neq \varnothing) = 1 $$

This only works with convex shapes (think of a circle inside a donut hole and why that wouldn’t work), but we’re dealing with rectangles so the above property holds. This is important because it implies that collision candidates at the very least should be objects that are naturally close to each other. However, it’s not sufficient to rely on this verbatim: think of a rectangle with infinite width and infinite distance from our reference rectangle. We need to look at not just the center point of a shape, but its boundary points as well. For AABB rectangles, there are $4$ points for each shape.

Grid hashing divides the space into a uniform grid where each cell is a bucket. For each rectangle $R$, we include $R$ once in every bucket containing at least one of the vertices of $R$. Collision can happen only between rectangles in the same bucket. Take a look at this image:

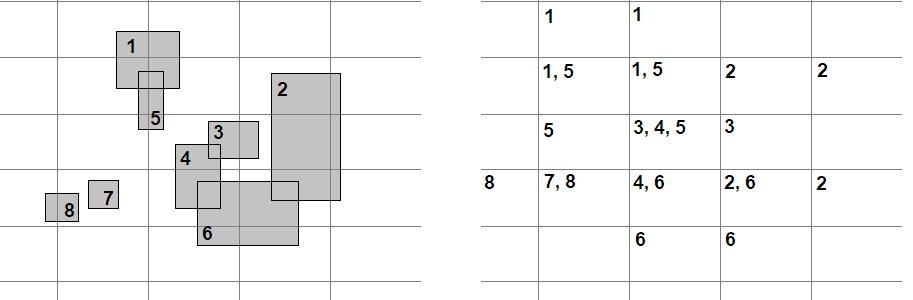

The left side shows the grid and a 8 rectangles (each of which is labeled). The right side shows the grid and inside each cell there’s a list of labels representing which rectangles are included in that cell. For each cell, we check for collision between rectangles in that cell’s bucket.

What are the speedup gains? Well, the naive approach would take $\binom{8}{2} = 28$ comparisons, while here we only have$8$. Furhtermore, since we don’t allow duplicate collisions, this is reduced to $7$.

Grid hashing can be implemented using hash tables and tilesets. A hash table approach is more flexible but can result in hash collisions so it’s a bit slower. A good hash function can be $h(x, y) = x * p_1 \oplus y * p_2 \mod n$ where $p_1$ and $p_2$ are prime numbers and $n$ is the hash table size, or alternatively using Morton’s space filling curve. Tilesets have a fixed range but hashing is precise and fast since it’s a 2D matrix.

Do you notice a problem with this approach? Look at the above image, specifically rectangle $2$, and how it might miss certain collisions. Here’s a more clear example:

A shape that spans across more than two grid cells will not be included in the middle cells’ buckets. In the above image, rectangles $1$ and $2$ intersect in the middle cell, but neither of them has an endpoint in that cell, so we lose information.

Cell size is a hyperparameter, and grid hashing only works if all shapes are smaller than a cell (in all axes). If we know ahead of time that there’s a maximum size for bounding volumes, this isn’t an issue. If we don’t know, then we can scan through all the objects ahead of time and determine the largest one. This is fine, but if there isn’t an upper bound on the objects’ sizes, then the cell size can grow indefinately which results in diminished performance gains.

An adaptive approach where the cell size isn’t uniform is what we need. To do that, a hierarchical representation of the metric space is required, and this is done using trees.

Quad tree

Quad trees are a spatial data structure used to segment 2D space. The 3D analog is the oct tree, and it works the same way.

A node in the quad tree is a rectangle representing some area in space. Objects are added to the node until the node’s capacity is reached. When that happens, the node splits into 4 children, and each object of the node is passed to the child whose area intersects with the object. This process repeats recursively, or until a node reaches a certain minimum size after which splitting is no longer possible. Leaf nodes of the quad tree are buckets containing collision candidates.

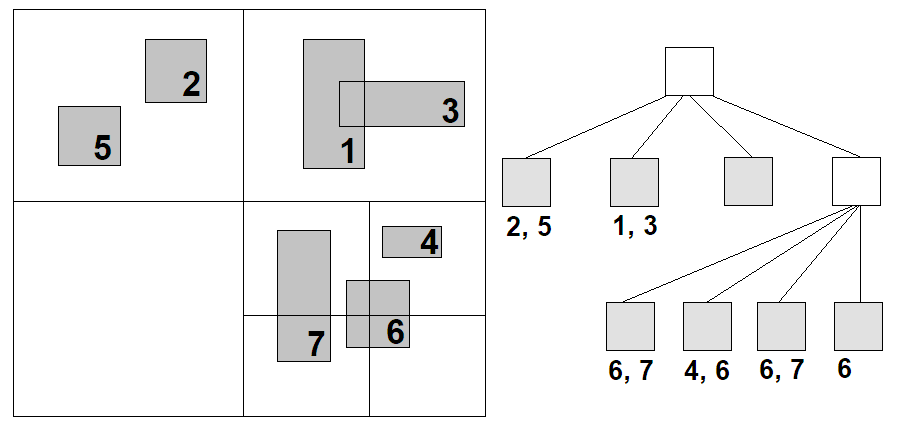

The image below demonstrates a quad tree. The left side shows the measurable space and all bounding boxes of the objects. Each object is labeled from $1$ to $7$. A grid is drawn representing the quad tree split. The right side illustrates the quad tree structure itself. We assume that the capacity of any node is $2$. At the top of the tree is the root node, spanning the entire space. Because there are $7 > 2$ objects covering the root node, a split occurs, and each child (top-left, top-right, bottom-left, bottom-right) is $1/4$ the area of its parent node. Leaf nodes are shaded and labels of objects spanning the leaf are written underneath. The bottom-right child of the root splits once again.

There are $5$ comparisons made in total ($4$ if you discount duplicates), compared to the brute force solution requiring $21$ comparisons. How well a quad tree performs depends on the capacity hyperparameter. Intuitively, we’d want to set it to a value $c$ that maximizies the performance gain $n^2 - \frac{n}{c} c^2$ and minimizes necessary work $\frac{n}{c} c^2 = nc$.

Quad trees adapt well to cases where we have local clusters of objects as well as empty space between these clusters. The memory footprint of empty space is minimal.
Compared to grid hashing, quad trees don’t suffer from objects spanning more than two cells (nodes) in either direction, because there’s an inversion of control happening here: in grid hashing, it’s the object deciding which buckets its belongs to; in quad trees, it’s the nodes themselves deciding which objects belong to its bucket.

Unfortunately, quad trees come with several drawbacks.
(1) First, they’re designed for particles (no shape). Notice how in the picture above, a single object is contained in multiple buckets. This can degenerate into the naive approach, but such cases are rare. That said, duplicates are extremely common and bring degradataion performance when constructing trees since the probability of a node split increases.
(2) Second, the previously mentioned capacity hyperparameter $c$ can make or break broad phase optimization. If your game guarantees a sane distribution of elements across space, $c$ is easy to compute. If the objects are large and $c$ is small, you’ll quickly end up with a complete tree, split to the very end. At that point, quad trees behave like grid hashing, with the added overhead of constructing the tree.
(3) Third, you have to specify the space size ahead of time. This may seem like a non issue, and you could certainly compute these bounds in $O(n)$ for each frame, it makes any attempt at clever optimization of $c$ impossible. Not only that, but you have to decide the minimum allowed node size beyond which splitting isn’t allowed.

Let’s take a step back and reason about where these issues with quad trees come from. You are taking a fixed chunk of space and splitting into a non-uniform grid. You are requiring objects to conform to this grid, no matter where they are positioned. Constructing a quad tree seems clever because at no point does the tree have to think which node to pass an object along, it’s a matter of “you crossed this line, so at the very least you go here”. The tree is constructed according to the space, which is constant, instead of according to the objects, whose positions and shapes are ephemeral.

Quad trees optimize for the wrong measure: the density of objects in a unit of space. Instead, trees should infer their shape and structure based on the objects’ natural measures, and that’s what R-trees do.

R-tree

R-trees are trees where a node can have up to $B$ children ($B$ is a hyperparameter). Each node represents a subsegment of the space, and areas can overlap (they can overlap in quad trees too, but only ancestor-child nodes). R-trees can span an arbitrary space, and they the nodes cover as much space as is needed, but not more.

The principle of R-trees is similar to quad trees: insert objects to a node, split the node when object count overflows the capacity. Unlike quad trees, R-trees split unevenly, trying to make the new child nodes as small as possible.

A split of an R-tree node is made by optimizing some measure, most commonly maximizing unused area:

$$ \argmax_{N_1, N_2} Area(N \setminus (N_1 \cup N2)) $$

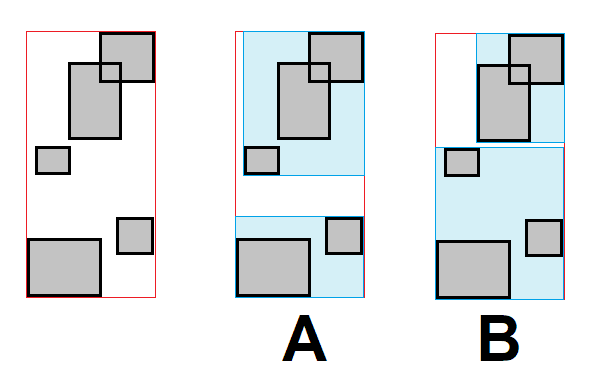

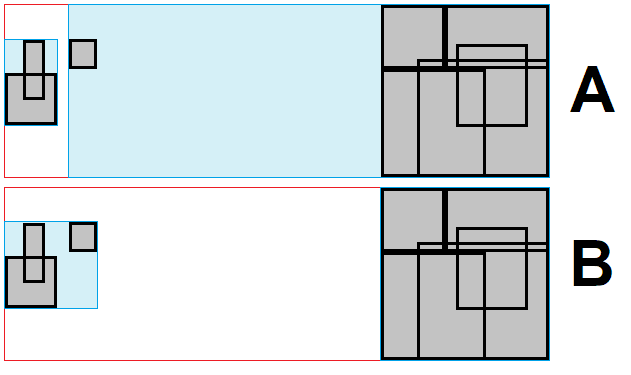

Take a look at the picture below. The leftmost image is an r-node (red outline) containing $5$ objects. On the right are two different splits, labelled $A$ and $B$, with their bounds highlighted in blue. In this example, the split $A$ would yield a larger unused area.

The intuition behind this is that greater unused area means more compact bounding boxes for the two new nodes. If two objects are far apart, then the unused area between them increases. We’ve already established that the probability of intersection decreases as the objects get further and further apart. See the image below, the $A$ split is unnatural and leads to computation time wasted on cases which are visually obviously negative.
Another thing I should point out is that we can maximize/minimize the perimiter of the rectangles instead of their areas. Think of a thin but extremely long rectangle. Its area may not be large, but the distance of two objects along the longer axis is large, then the algorithm will correctly split so that the two objects cannot intersect.

Finding the area of a union of 2D rectangles is Klee’s measure problem for the case $d=2$ which can be solved using Bentley’s algorithm in $O(n\log{n})$. In fact, it can be shown that for $d=2$, the lower bound for a solution is $\Omega(n\log{n})$.
In general, there are $2^{n-1}-1$ possible ways to split an R-tree node containing $n$ elements, where each object can be put inside one or both nodes (the areas of child nodes can overlap).
Finding the optimal split therefore has an upper bound of $O(2^{n}n\log{n})$, which isn’t practical for real use cases.

In order to improve on this, we have to introduce approximations and heuristics. These optimizations often rely on choosing two seed objects as pivots for the new nodes, and then expanding the pivots for each remaining node based on the heuristic of minimal area expansion when inserting the object $o$:

$$\argmin_{i \in \{1, 2\}} Area(N_i \cup o) $$

The original paper on R-trees introduces three such splits:

The main issue with these approximations is that they introduce overlap between nodes, which leads to degradation of performance. The bottleneck of R-trees is not construction, but querying. In general it is better to opt for a quadratic split which, while more costly to create, yields fewer false positives.

Both the quadratic and linear split result in a large overlap. There exist variations of the R-tree that attempt to reduce this. For example, the R*-tree tries to minimize the nodes’ area, perimiter and total overlap between siblings. Furthermore, it tries to evade splitting the node whenever possible by taking the $f \in [0, 1]$ (usually $~30\%$) furthest objects from the node’s center and reinsert them starting from the root. This idea takes inspriation from how B-trees are balanced. R*-trees construction is far more costly, but it makes up for quicker amortized queries because of the reduced overlap.
Unfortunately, R*-trees behave poorly for densly packed objects in a small space. Because R-trees are not unique (unless we split using the optimal approach which isn’t practical), the order in which objects are inserted can significantly impact performance.

Bulk R-tree

Because we know our input data ahead of time, we can perform certain bulk loading mechanisms to preprocess the objects in such a way that the tree is more optimized.

These mechanisms have us build the tree in a bottom-up procedure, which greatly simplifies the construction of an R-tree as we no longer have to split nodes and re-insert objects to keep the tree sorted nor perform expensive heuristics to reduce overlap between nodes.
The general idea behind all of these mechanisms is the same: leaves are built from objects which are locally close (per the distance metric $d$), upper level nodes are built using the same heuristics, the process repeats recursively until we are left with a level with a single node - the root. The heuristic in this case is an ordering function by which the objects are sorted.

Nearest-X is a simple bulk-loading algorithm which sorts the objects on the $x$ axis and groups objects into segments of size $k$. A new R-tree node is assigned to contain each group. The process repeats while $k$ is reduced in each upper level of the tree.

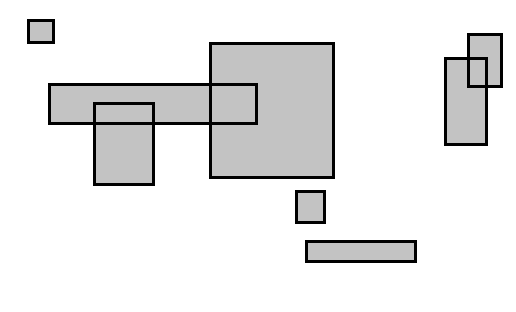

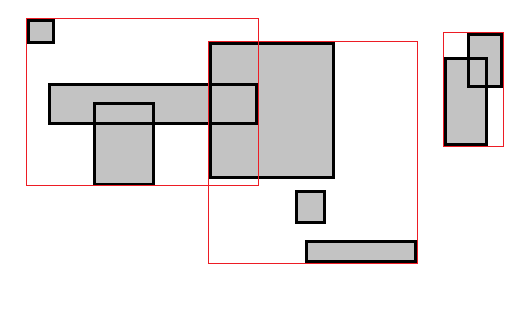

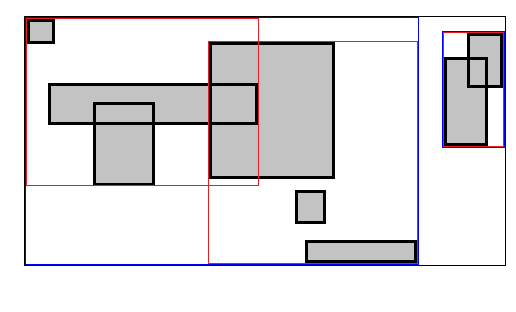

Observe the following example. There is a scene with $n=8$ objects in it, and we set the capacity to $k=3$ (top-left image). Assume the objects have been sorted by the x value of their centroid. The first $k=3$ objects will be grouped into the first leaf node, the second $3$ objects into the second leaf node and the last remaining $2$ objects into the third leaf node (top-right image, leaf node represented by a red rectangle). There are $3$ leaves in the topmost layer in the tree so far, so we continue with the algorithm. Now $n=3$ and $k=\max\{\frac{n}{k}, 2\}=2$ ($k$ mustn’t be $1$ to prevent infinite recursion). The first two leaves are grouped in the first new node, while the last leaf in the second node (bottom-left image, the new nodes are blue). There are $2$ nodes in the topmost layer in the tree so far, so we continue. $n=2$ and $k=2$. The two “blue” nodes are grouped together into a single new node of the new layer (bottom-right image, the new node is black). There’s $1$ node in the topmost level, so it has to be the root and the algorithm is finished.

We don’t have to sort the nodes themselves. If the objects are sorted by their centroid, then all later encompassing nodes, effectively convex hulls, will have their centroids also ordered. The time complexity is $O(n\log{n}+nd)$, where $d \approx \log_k{n}$ is the tree depth.

Nearest-X works well in general cases, but its performance depends on the $x$-distribution of the objects. Sorting on the $x$ axis will usually result in a tree where each node is narrow but tall. While the compactness improves performance, the large perimiter of each node lowers the performance of region queries. Furthermore, the degenerate case is when all the objects’ centroids align on the $x$-axis. We could circumvent this by doing a linear pass and determining the axis with the greater variance on which the sorting should occur.

Sort-Tile-Recursive improves upon Nearest-X by attempting to group objects on the $y$-axis as well. While Nearest-X sorts the objects only along the $x$-axis, $Sort-Tile-Recursive$ uses a more advanced approach:

  1. Sort all the objects along the $x$ axis.
  2. For each slice of size $\lceil \sqrt{n/k} \rceil$, sort the objects along the $y$ axis.

The idea here is to sort by $x$ and $y$ at the same time, but because there’s no natural ordering of two-dimensional data, we approximate the other axis. What this does is it effectively tries to group objects into a tile grid.

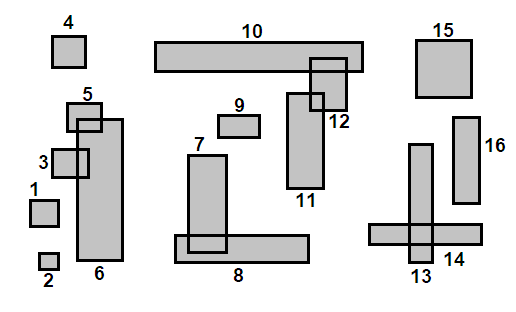

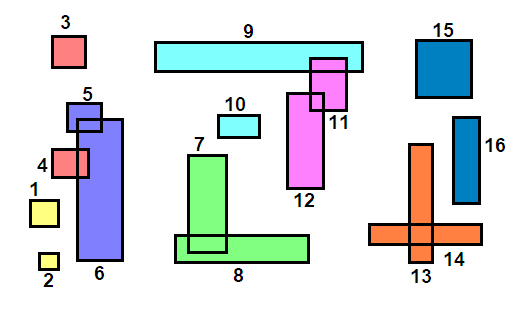

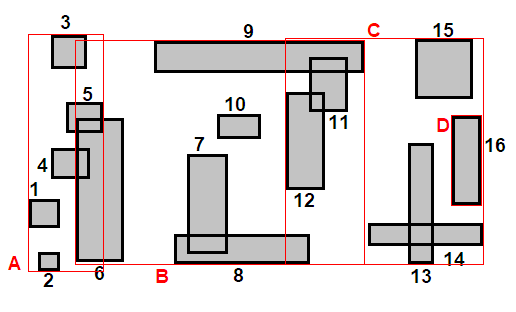

See the image below for an example ($n=16, k=5$). In top-left, the rectangles have been sorted along the $x$-axis by their centroid, and labelled. The sorted list is grouped into slices of size $\lceil \sqrt{16/5} \rceil = 2$ as shown in the top-right, slices being represented by colors of their objects. Each slice object is sorted along the $y$ axis and the new labels are shown in bottom-left. Finally, we group the objects into $k$ segments just like in Nearest-X, resulting in the nodes shown in the bottom-right image ($A, B, C, D$). The algorithm then repeats (create $\lceil \sqrt{4/5} \rceil$ slices, group into $k$ etc.) until we arrive at the root node.

This is better, but there’s still a bias towards $x$ distribution because of how the sorting function compares rectangles. If we could come up with a heuristic function $f : \mathbb{R}^2 \to \mathbb{R}$.

Space filling curves

Time for some more math. I’ve discussed that a metric space is a set of objects coupled with a distance function. This idea of a “set with some operations” is known as an alegbraic structure and is studied in abstract algebra. Other algebraic structures are groups, fields, rings, lattices etc.

Metric spaces are a bit special, because they are not pure algebraic structures, as they have a non-algebraic structure borrowed from topology. The Euclidean 2D metric space is isomorphic to the vector space of complex numbers $\mathbb{C}$. This just means that certain properties of complex numbers also hold for 2D Euclidean spaces.
Specifically, there is no total order on $\mathbb{C}$, which is to say that you can’t order complex numbers in such a way that no contradictions arise when also comparing the sums/products of complex numbers. The Euclidean 2D metric space also has no total order as it is not compatible with the topology of the metric space. An explanation on why this is the case is a bit tricky, but a simplified version is that any ordering of 2D numbers does not generate a space that’s compatible with Euclidean 2D space (neighborhoods stop being balls).

The X-sort and Sort-Tile-Recurse generate a non-Euclidean topology, which is why these algorithms are imperfect. The crux of this imperfection, like I’ve said, is bias towards one axis. What if there was a way to order points such that both axes contributed just as likely?

Enter space filling curves. A space filling curve is a function that maps a unit range onto a unit $n$-dimensional cube:

$$ f : [0, 1] \to [0, 1]^n $$

Imagine you were tasked to draw a single line from the bottom-left corner of a sheet to paper to the top-right corner of a sheet of paper, covering the entire paper, without lifting your pen off the paper. Visually, a space filling curve would then map your progress so that $f(0)$ is the moment you begin, and $f(1)$ is the moment you finish.

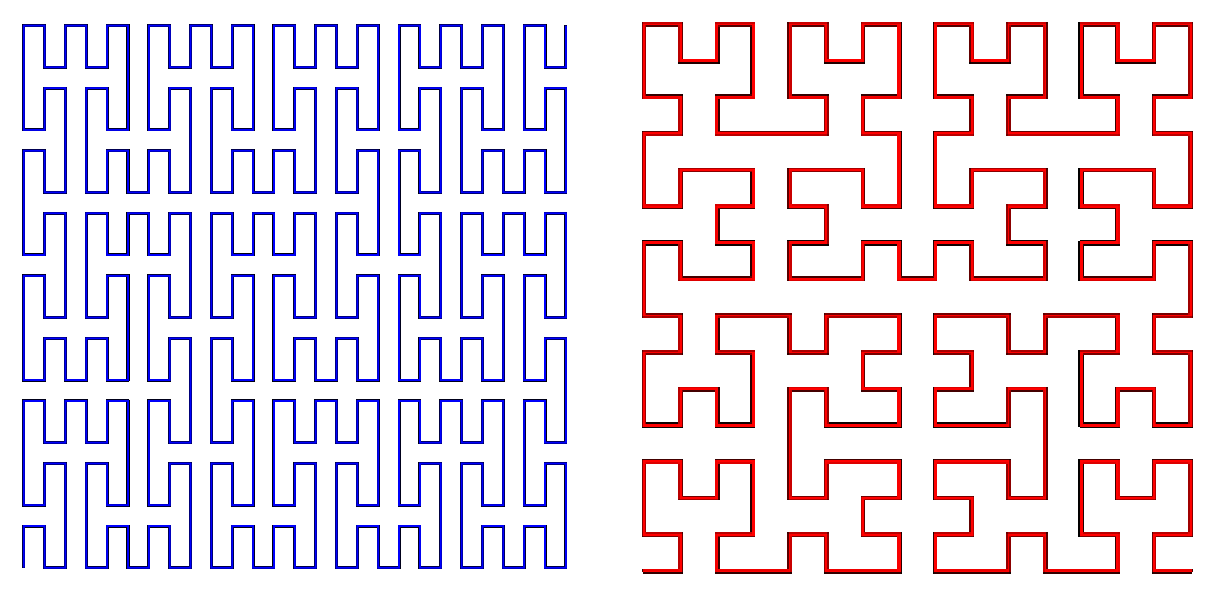

Many space filling curves are fractals, like the Peano curve (left) and Hilbert curve (right). That’s helpful because the functions can be expressed recursively and thought about through iterations. The two images below are not the Peano and Hilbert curves, because they’re not really filling up the entire space. They’re the 3rd iteration of their curves. Each successive iteration fills up more space, so when $\text{iter} \to \infty$, the curve truly does fill up the entire space of a unit square.

Why is this important? Because the inverse space filling curve maps points to the real numbers which gives us a ordering.

$$ f^{-1} : [0, 1]^n \to [0, 1] $$

This ordering still isn’t total, but there’s no bias towards either axis. If we could sort our rectangles using an inverse space filling curve, we could improve upon the previous bulk-loaded R-trees.

Hilbert R-tree

The Hilbert R-tree is a bulk loading mechanism for R-trees, similar to X-sort and Sort-Tile-Recursive. Rectangles are sorted according to the Hilbert value (inverse Hilbert space filling curve) of their centroids. The rest of the algorithm groups objects in the same way as X-sort.

Since space filling curves are continuous, we cannot represent them accurately in computers. Computing the Hilbert value of a 2D point thus approximates the true value. In this case, the space is segregated in an imaginary grid, and the Hilbert value of a point is the index of the grid cell containing the point, where the cells are ordered along the Hilbert curve pattern.

The result is not a real number in $[0, 1]$, but an integer in $[0, 2^{2k}]$ where $k$ is the precision of the Hilbert curve approximation. This parameter is usualy bounded to $32$ or $64$, as the algorithm for computing the Hilbert value relies on bit manipulation. All the points in the metric space must be in the range $[0, 2^k)$, the space has to be scaled beforehand.

The resulting Hilbert R-tree usually looks like a hieararchy of non-uniform grid cells. This goes back to earlier where we touched upon the drawbacks of Grid hashing. The complexity of constructing a Hilbert R-tree is $O(n\log{n}+nd+nk)$, as each rectangle is mapped to a Hilbert value in $O(k)$ only once (Schwartzian transform).

K-d trees

In the naive approach section, I briefly touched upon an idea of splitting the entire space into two different subregionsn and by doing that, we were able to reduce the total number of computations. The method of splitting assumed there were two disjoint clusters of rectangles, which isn’t always the case. While that wasn’t a practical solution, the idea of splitting a region into two could be utilized in a different way.

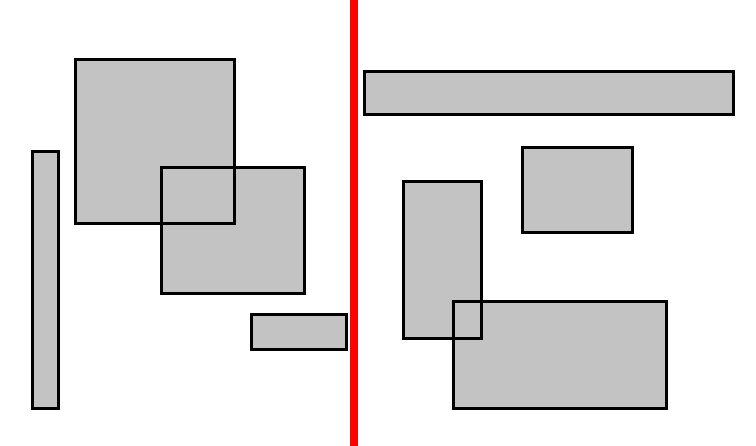

If we split the rectangles by their median element (median of sorted rectangles on one axis), then we could easily discard half of the elements when querying any one rectangle for collision. For example, let’s sort along the rectangles by their right edge and draw a line along the median:

To query any rectangle, we need to determine how to discrd either of these sides. We could compare the right edge of the query rectangle $r$: if it’s on the left side of the median line $m$, then so is the left edge of $r$, so we can discard the right side of the split. We can’t always discard, but we can sometimes.

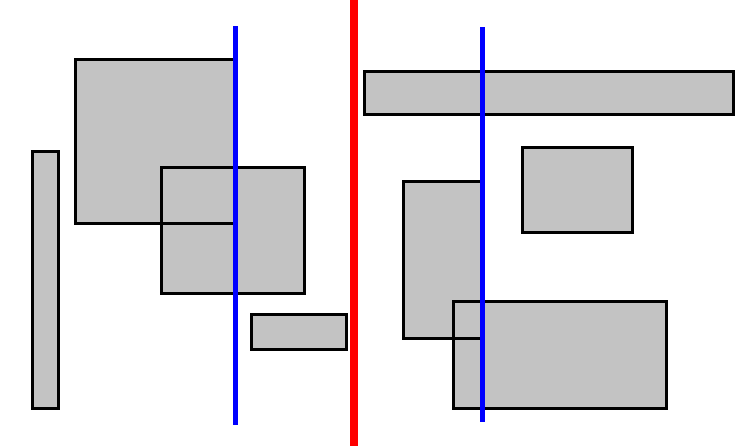

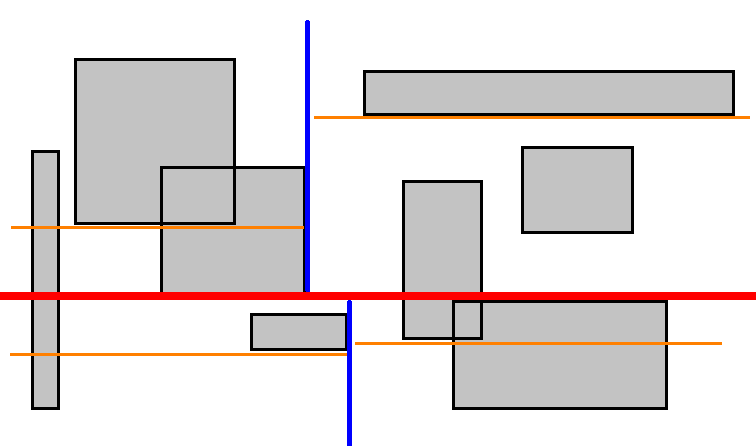

Let’s not stop there: not let’s split the two subregions using the same process.

This time around, some rectangles intersect the median line, which is why can’t always know for certain if one of the two sides can be discarded when querying. We can repeat this process until we are left with $1$ rectangle in the subregion.

This is a binary search with charactersists similar to interval trees and segment trees. A flaw of this approach is, once again, bias towards the $x$ axis. A much better approach would be to alternate the axis: $(x, y, x, y, …)$ such that the $2i$th level uses the $x$ axis, while the $2i + 1$th level uses the $y$ axis when splitting along the median. Such a tree is called a k-d tree.

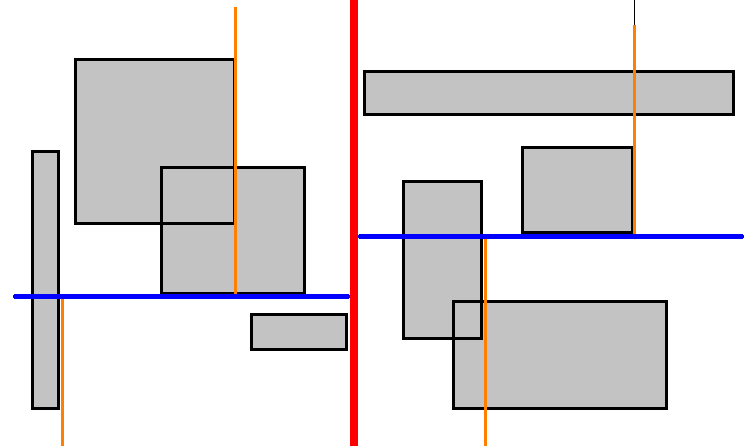

The image below shows what that a k-d tree would look like for the previous input. The median lines are, in order: red, blue, orange. Line orientation alternates. K-d trees aren’t completely unbiased, as the initial order of the axes affects the final tree. In the right side of the below image, the axes are flipped so that the root is split along the $x$ axis etc.

While constructing a k-d tree can go on until a leaf node has exactly one element, such trees would be too deep and would require too many queries. The capacity hyperparameter $c$ must be chosen and should be at least $2^k$, where $k$ is the dimensionality of the $k$-d tree.

Building a k-d tree can be done in $O(n\log{n}\log{n})$. By pre-sorting along each of the $k$ axes, this can be brought down to $O(kn\log{n})$. If a clever algorithm for finding the medians is used (without sorting), this can further be brought down to $O(n\log{n})$. Querying a single rectangle, in the worst case, is $O(n)$, while in an ideal case it’s $O(\log{n} + c)$.

Benchmarking

The implementations described above are benchmarked using the following parameters:

Entity count (i.e. the $n$) values were chosen to show degradation of performance but also spot any unusual cases for small $n$ (for example $n^2$ behaves better than $100n$ for small $n$ but not in the general case).

The way entities are placed, whether they form patterns, clusters, how uniform their distribution is etc. has helped us gain intuition behind using trees and various heuristics. Entity placement is also important in benchmarking, as certain algorithms and data structures make assumptions based on the aforementioned observations.

Results

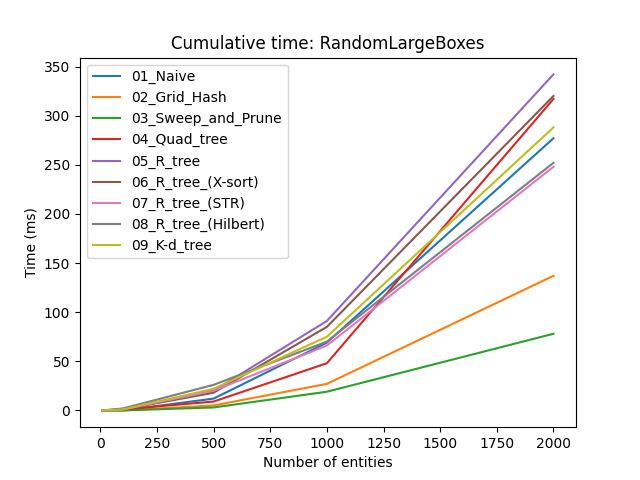

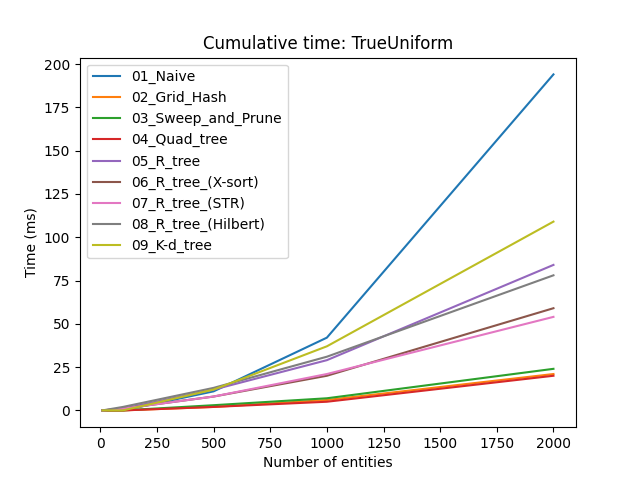

Below is a standard benchmark where the total time for a single frame is being measured (in ms). The reference values we are interested in are $33ms$ for $30$ FPS and $16ms$ for $60$ FPS.

The first thing to notice is that for $n < 500$, the choice of which strategy to use doesn’t matter all that much. If your game world can be subdivided into smaller rooms such that only one room has collision checking, you can get away with not using any broad phase strategy.

Obviously, we’re more interested in how the lines behave as $n \to \infty$. The interesting thing (although not that surprising) is that Sweep and prune outperforms all other data structures, except for the XLine test. This makes sense, as the variance along the $x$-axis in that test is very low, so sorting and pruning accomplishes nothing. On the other hand, Sweep and prune is extremely performant in the YLine test, where the $x$ variance is large. Like we’ve discussed before, this irregular behavior can be remedied by checking which axis to use before the algorithm begins.

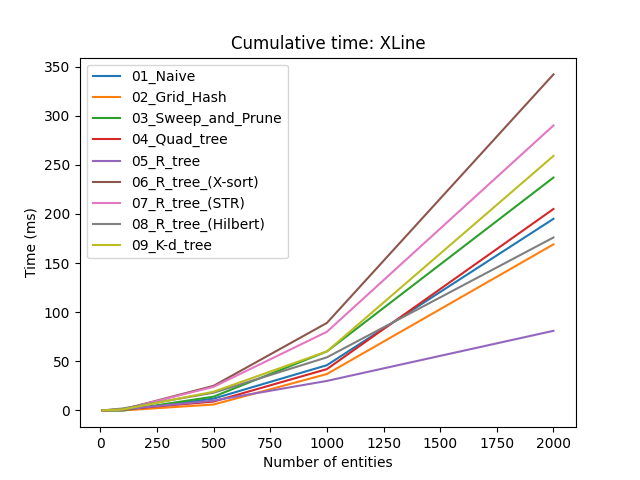

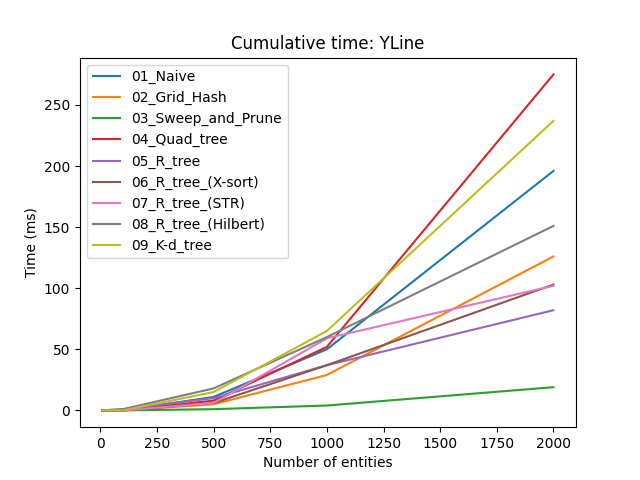

A strange phenomenon is that the Quad tree performs much worse in YLine than in XLine, even though the quad tree is an unbiased data structure. I first thought it was because the test area is $800\times600$ pixels big, the entities would spread out more along the $x$ axis which helped reduce overlap, especially because the entities are the same size with swapped axes in the two tests, so there would be greated overlap along the $y$ axis. Even after using the same dimensions for both axes, the YLine test performed slightly worse (but way better than before). I’m not sure why this is the case yet, but it goes to show that the choice for hyperparameters is very important.

R-trees have an unimpressive performance, especially the standard R-tree. Bulk-loading helps as it eliminates the need to reinsert nodes and keep the tree balanced. Amongst the bulk-loading strategies, X-sort has the least overhead and produces satisfactory results. The only exception is the XLine test, for the same reason as why Sort and sweep behaved poorly in that test; we can use the same tactic of deciding the axis before sorting to improve performance.

K-d trees perform poorly because of the repeated sorting to find the mean. Like I’ve said, if we used a more clever but less percies method, this could improve build performance for the cost of query performance. In my experience, the median of medians algorithm does not behave nicely for this use case so I’ve omitted it from the benchmarks.

There are a couple of remarks I want to make before finishing off.

Firstly, the hyperparameters for all these strategies have been fixed throughout testing. A lot more research can be done on choosing these hyperparameter values based on a priori information like entity count and entity distribution. Whether this would improve the performance of trees still cannot be assessed, because of the following remark.

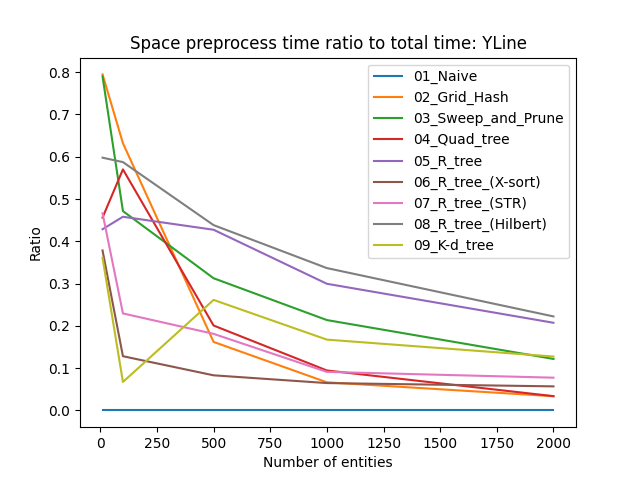

Second, each iteration of this test runs for one single frame. If it were run multiple times, then the auxilliary data structures would have to get reconstructed each time. Since the entities are assumed to be static, that would be a waste of processing time. We could cache the data structures between frames, making use of the temporal coherence assumption where very little would change between two consecutive frames. In fact, this would be the best approach for a dynamic environment. Many of these data structures, especially R-trees and K-d trees, support inserting and removing elements which is in general cheaper than reconstructing the entire tree. In fact, let’s analyze how much time is spent building the data structure over to the total time spent. The charts below plot out the behavior.

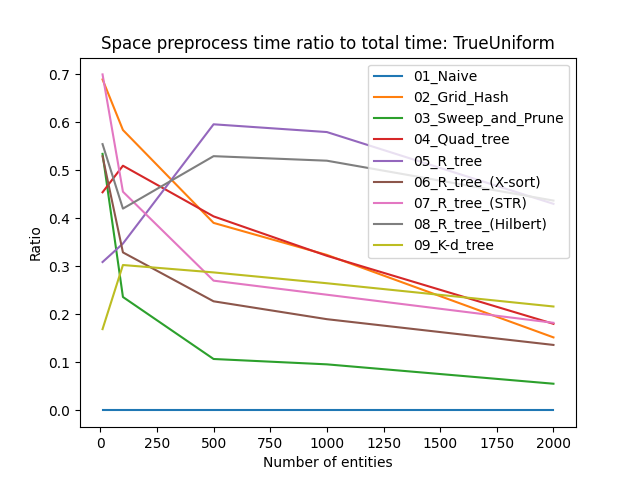

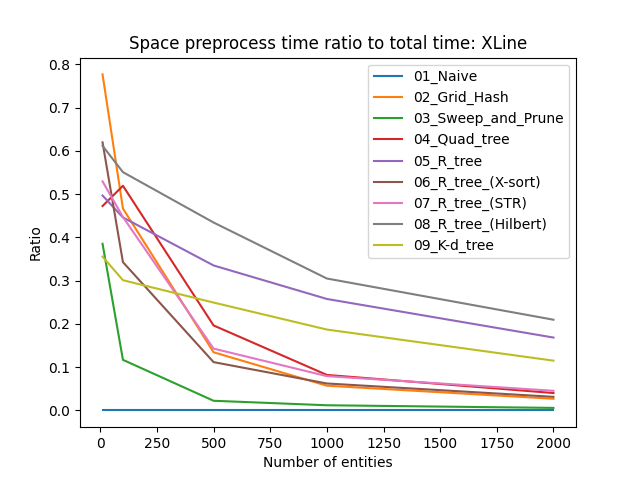

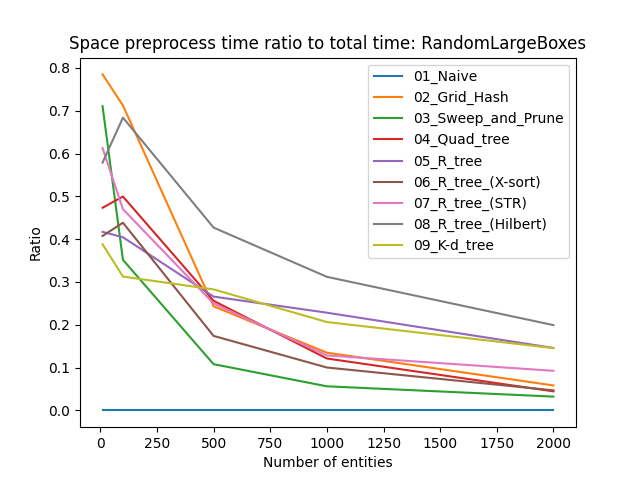

A ratio of $0$ is ideal and means that the entire processing time was spent on finding the collision candidates. The naive approach has no preprocessing so it achieves this ratio. All other structures perform some combination of sorting, hashing and building trees. Larger ratios are better, because if we can optimize those, then the total time will be much smaller. As we can see, R-trees have the most potential of being optimized through caching, while K-d trees are a close runner up.

This however goes beyond the scope of this article, but I’d like to do a part 2 of this article focusing on this specific requirement where entities are dynamic. The important thing to note here is that there is much room for improvement.

Conclusion

We’ve looked at several methods to reduce false positive collisions, most of them relying on spatial trees. All colliding objects have been abstracted as axis-aligned bounding boxes for simplicity. Much of the article focuses on building the intuition behind the approaches, explaining some of the math used to construct these geometric algorithms.

Benchmarking has shown that the Sort and Sweep algorithm (also known as Sweep and Prune) performs the best even when there are thousands of overlapping objects. Furthermore, Sort and Sweep is much easier to implement than R-trees and K-d trees.

The results of this article should be taken with a grain of salt: the choice of hyperparameters can greately affect the benchmarks. All entities are assumed to have been static, so a great deal of optimizations for dynamic environments haven’t been considered.
